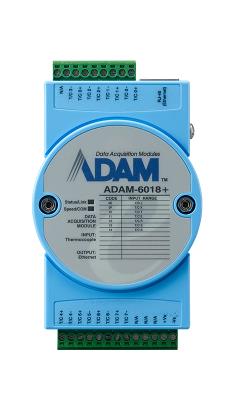

ADAM-6018+ 8-ch Isolated Thermocouple Input Modbus TCP Module.

	Download the ADAM-6018+ data sheet.
	Request a quotation for the ADAM-6018+

Overview

The ADAM-6018+ 8-channel thermocouple input module provides 8 thermocouple input channels to support the most popular temperature sensor in today’s industrial automation market.

Features

• I/O Type: 8 thermocouple Input Channels
• Supports multi-channel/multi-range
• Supports Type J, K, T, E, R, S and B type thermocouples
• Easy mounting on DIN-rail , panel piggyback
• 10/100Based-T Ethernet
• Supports Modbus/TCP
• Burnout Detection

Specifications

Analog Input

• Channels 8 differential
• Resolution 16-bit
• Sampling Rate 10 samples/second (total)
• Input Impedance >10 MΩ
• Input Type Thermocouple
• Input Ranges
  • Type J - 0-760°C
  • Type K - 0-1370°C
  • Type T - -100-400°C
  • Type E - 0-1000°C
  • Type R - 500-1750°C
  • Type S - 500-1750°C
  • Type B - 500-1800°C
• Accuracy ±0.1% or better
• Span Drift ±25ppm/°C
• Zero Drift ±6µV/°C

Ethernet Communications

• Compatibility IEEE 802.3, IEEE 802.3u
• Speed 10/100 Mbps
• No. of ports 1
• Port Connector 8-pin RJ-45
• Protection 2KV isolation

General

• Watchdog Timer System (1.6second) and Communication (programmable)
• Supports Peer to Peer mode
• Supports Graphical Condition Logic
• Supports Modbus/TCP,TCP/IP,UDP RESTful, MQTT and SNMP Protocols
• Protection
  Overvoltage Protection ±35V_DC
  Isolation Protection 2000V_DC
• Built-in TVS/ESD Protection
• Power Reversal Protection

Mechanics

• Dimensions (H x W x D) 70 x 130 x 30mm
• Enclosure ABS + PC with solid mounting hardware
• Mounting DIN 35 rail, stack, wall

Power Requirements

• Power Input Unregulated 10 - 30V_DC
• Power Consumption 2W @ 24 V_DC

Environment

• Operating Temperature -10 to 70°C
• Storage Temperature -20 to 80°C
• Operating Humidity 20 to 95% RH (non-condensing)
• Storage Humidity 0 to 95% RH (non-condensing)
